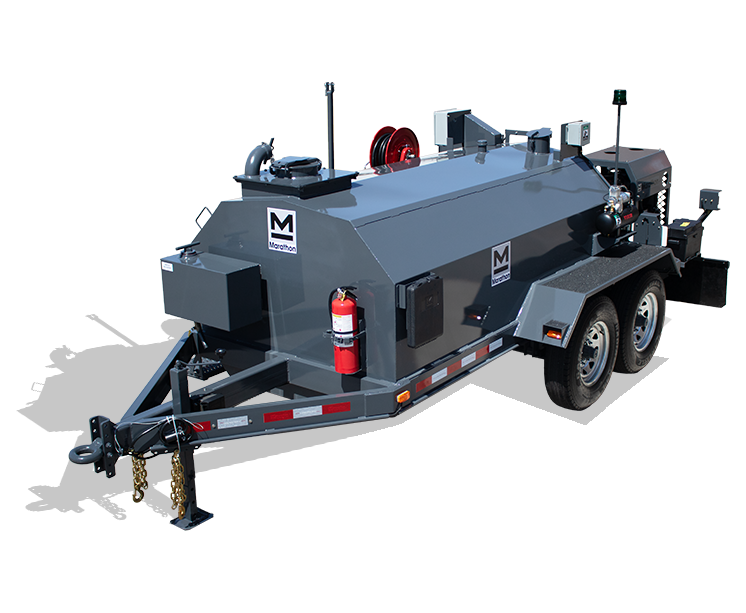

Marathon's hot tack distributors provide fast and reliable means of heating and applying solvent based emulsions and will save time on road maintenance, airport work, parking lots, or wherever hot tack or other liquids must be applied. With many configurations and options available you can customize your equipment with the options that are tailored to your job requirements.
Features
- Fully insulated material vat with thick metal panels fully welded and constructed of heavy duty channel and gusseted in locations for safety and strength.

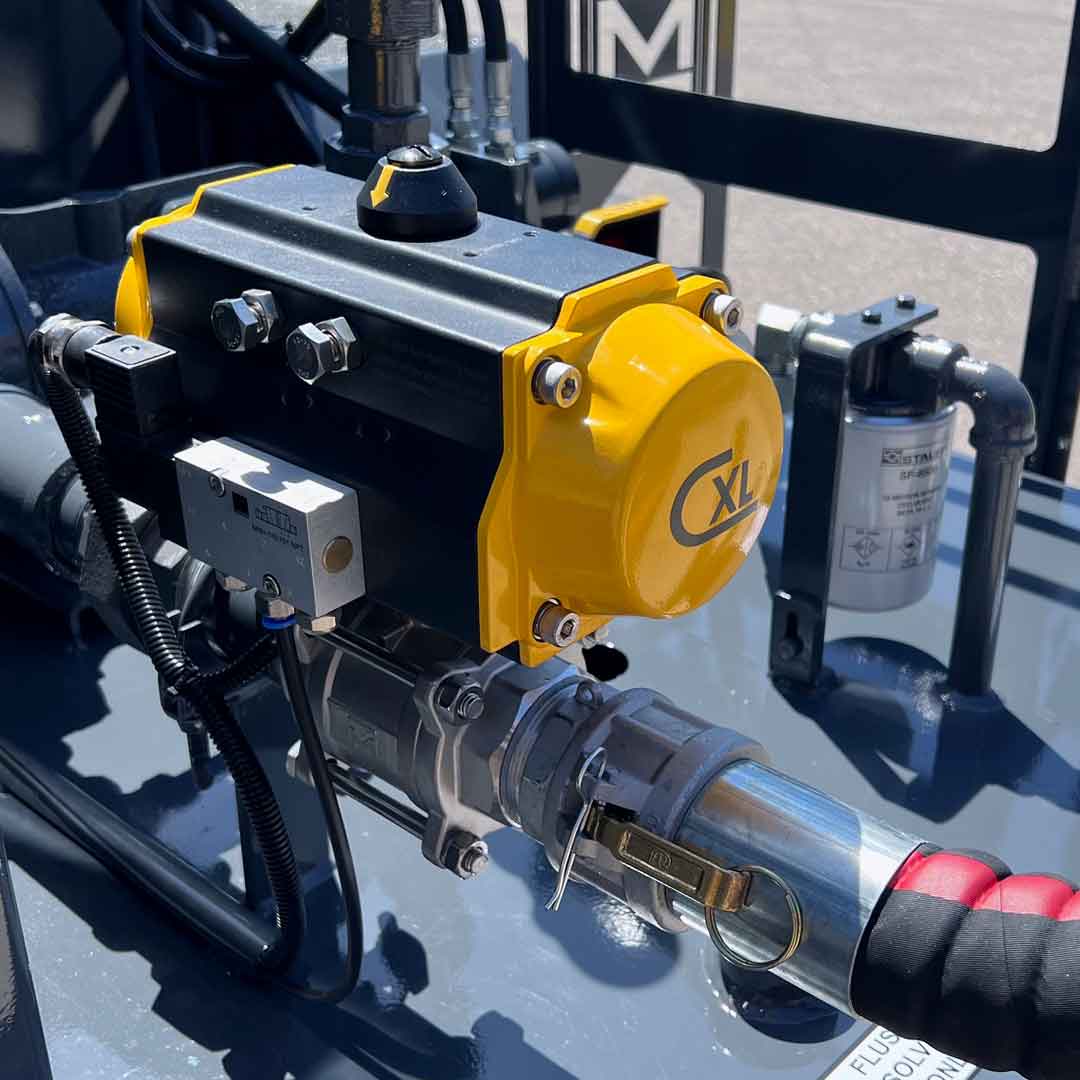

- 8' spraybar with air operated ball valve, wireless cab control and operator platform.

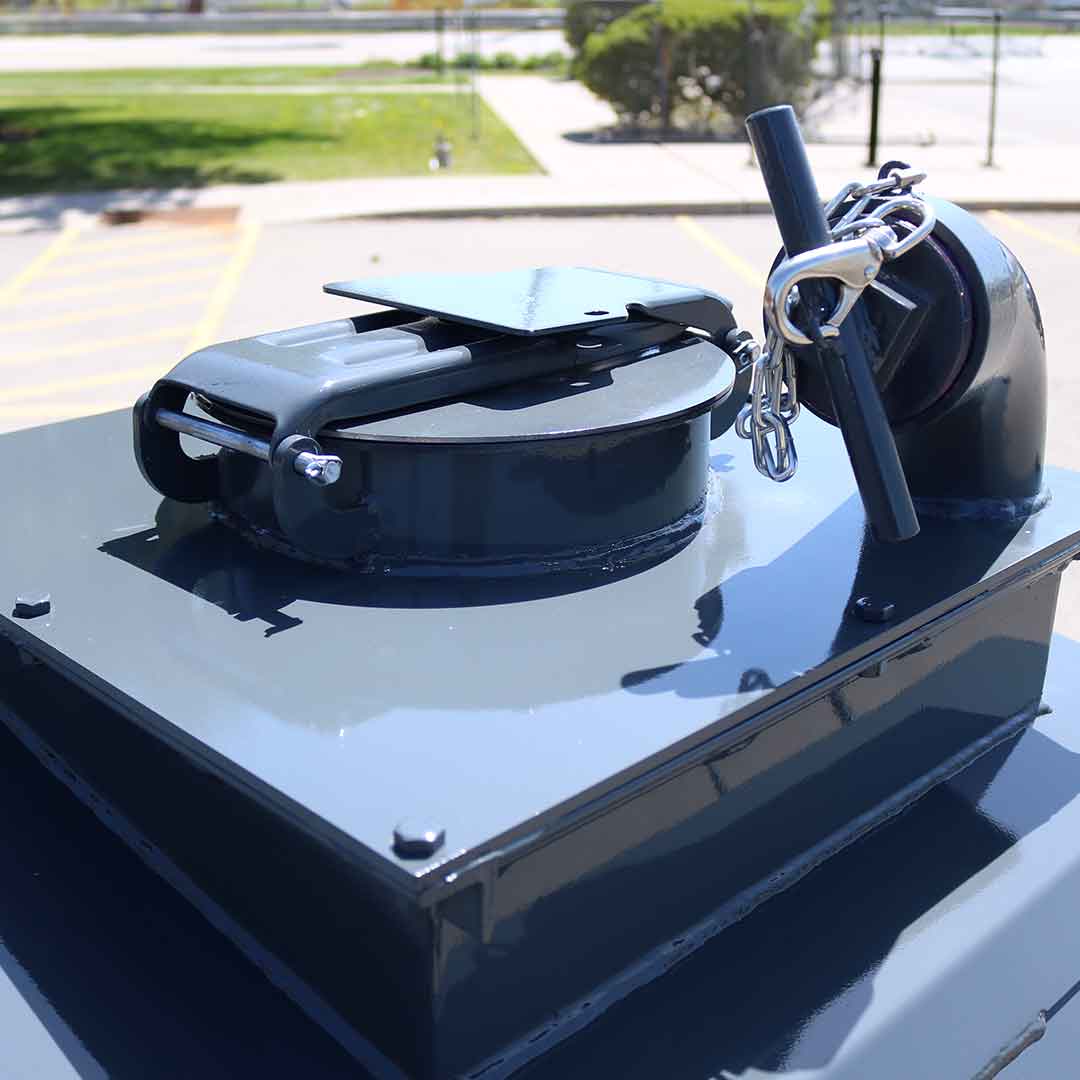

- Large 10” filler lid with 20” manhole provides easy access to material vat.

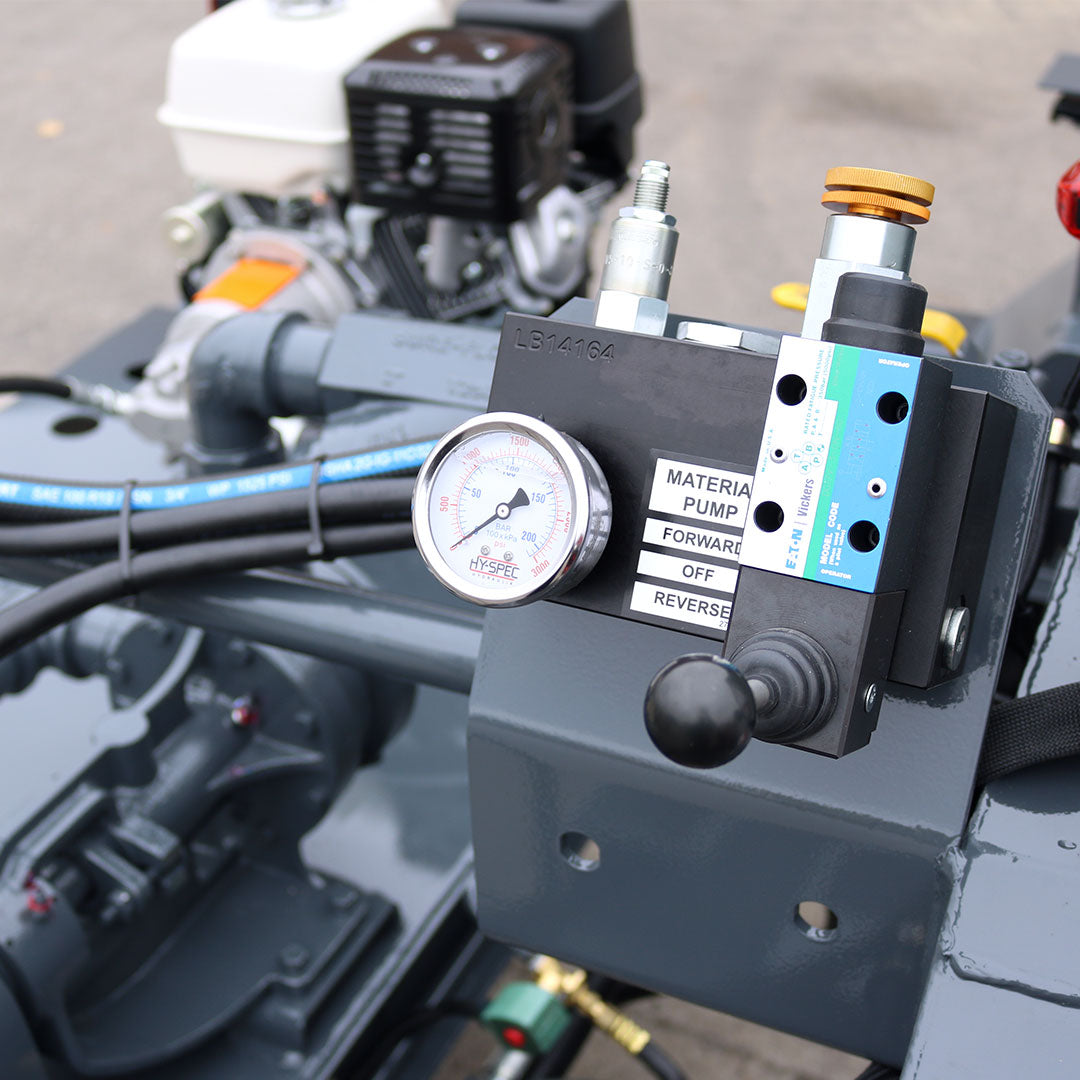

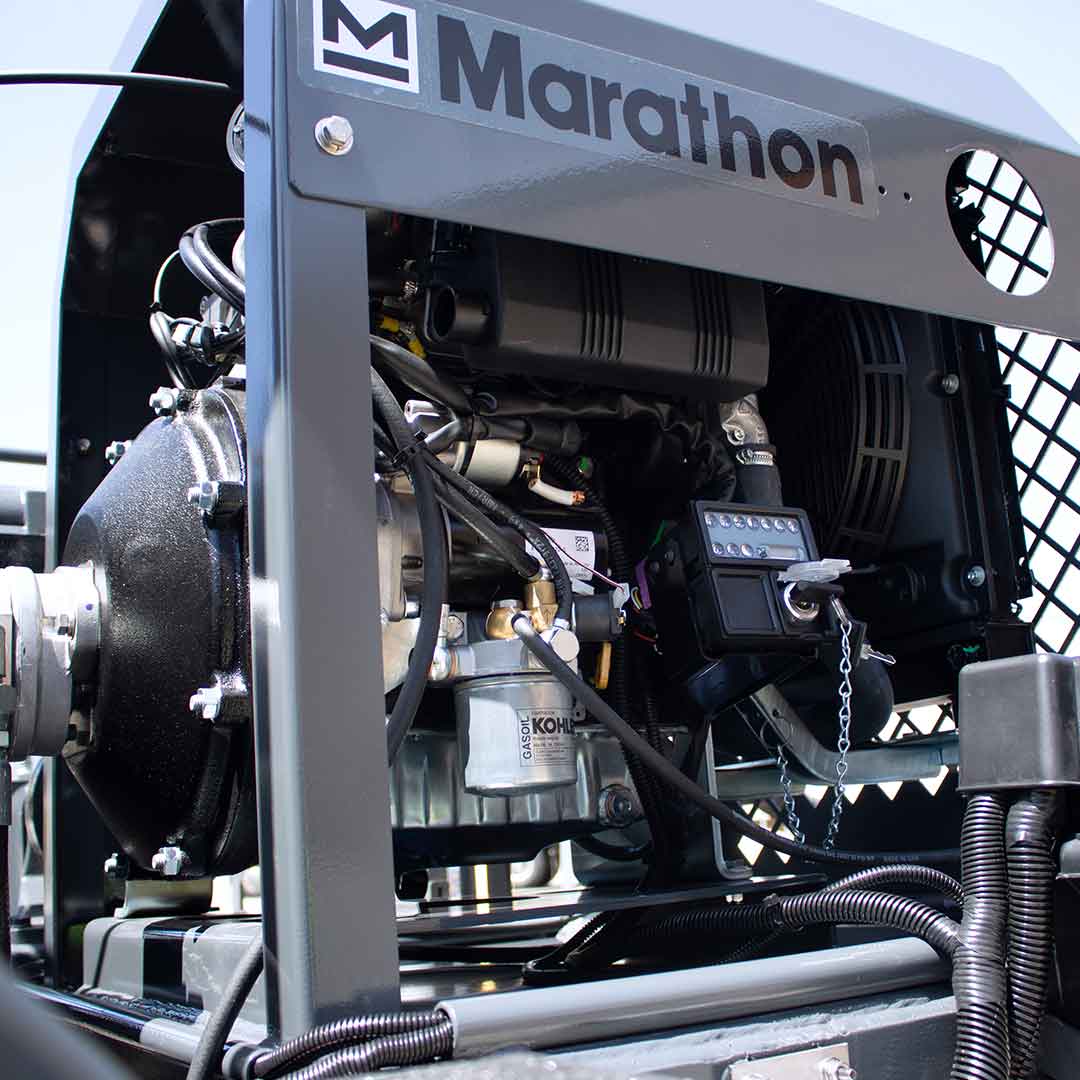

- All units come with a hydraulic pumping system, forward and reverse with 23hp electric start diesel engine and 60 GPM pump.

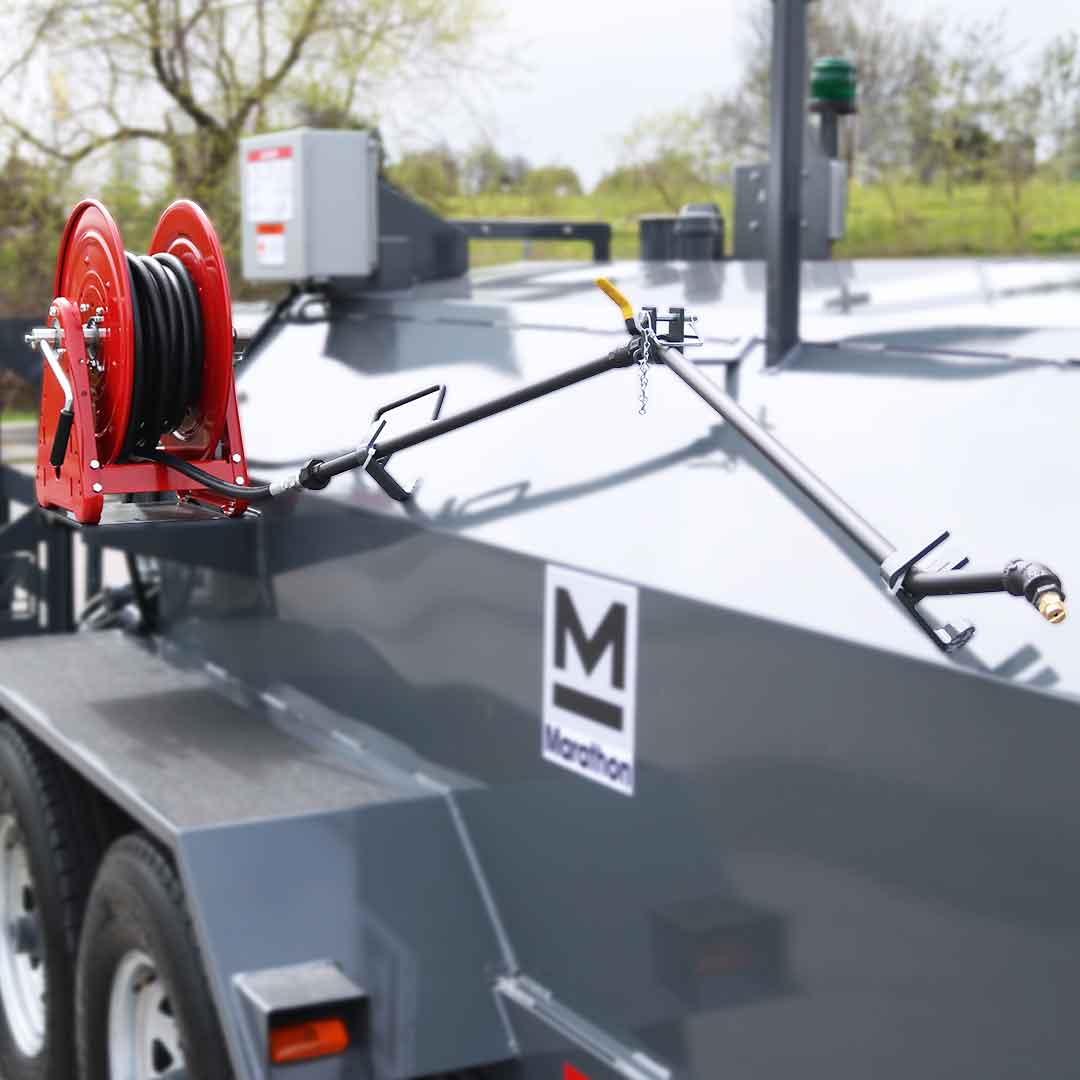

- 5' spray wand and 50' hose come mounted on a heavy duty hose reel
| Models | LD1000DT |
| Shipping Weight | 5,930 lbs (2,690 kg) |
| Tank Capacity | 1,000 gal (3,780 L) |
| Engine | 11 hp Honda |
| Pump | 60 GPM |
| Burners | (1) 165,000 BTU |
| Dimensions | |
| Overall Length | 212" |
| Overall Width | 92" |
| Overall Height | 70" |
| Loading Height | 61" |
| Suspension | |

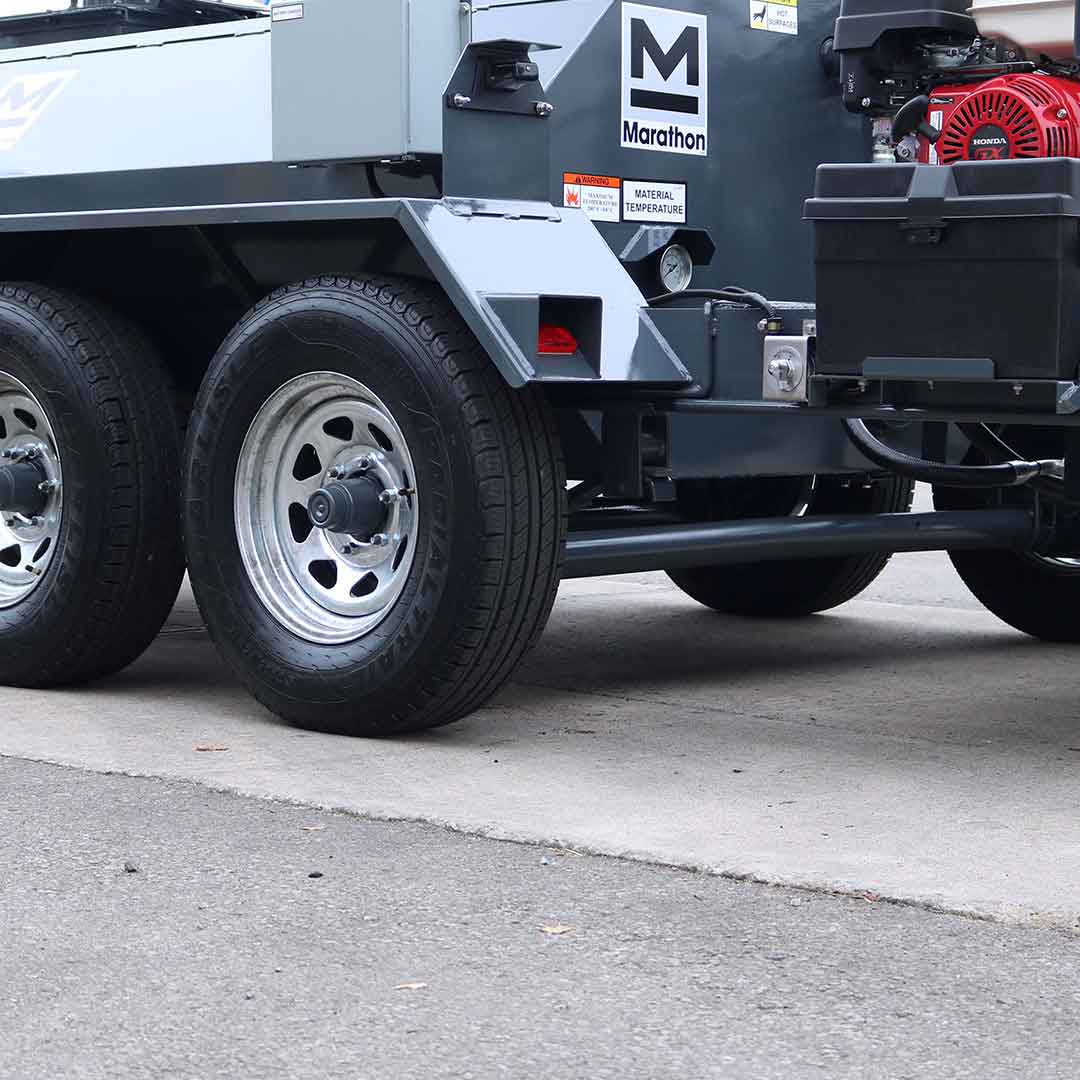

| Axle(s) | Tandem |
| Load Capacity | 14,000 lbs (6,364 kg) |
| Tires - Size | (4) 235/85/R16 |
