Marathon's hot tack sprayers provide a fast and reliable means of heating and applying bituminous emulsions and tack coats. Our units are capable of heating a large volume of bitumen on a steady basis and offer many operator friendly features and options.
Features
- Manufactured with 10 GA steel for a long service life.

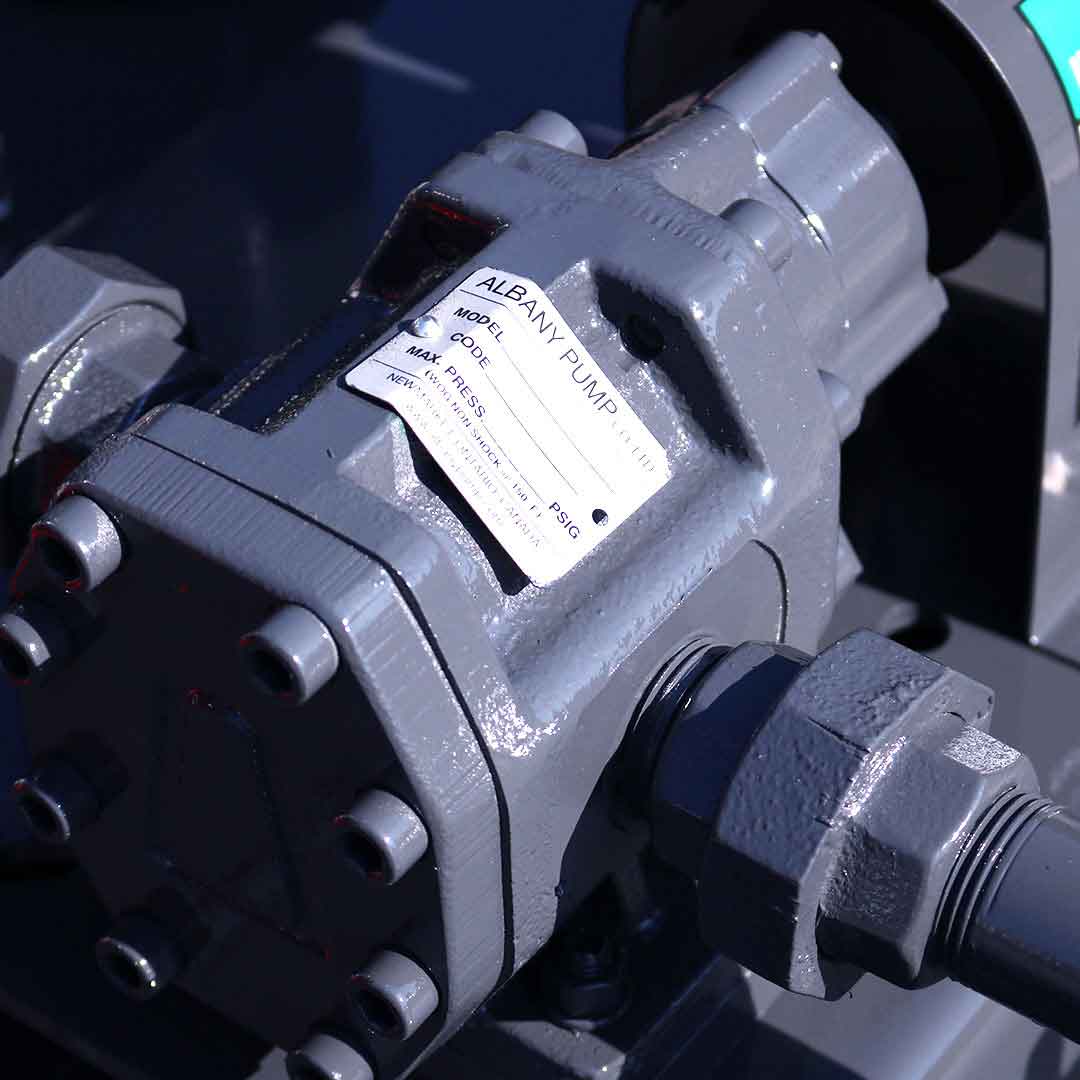

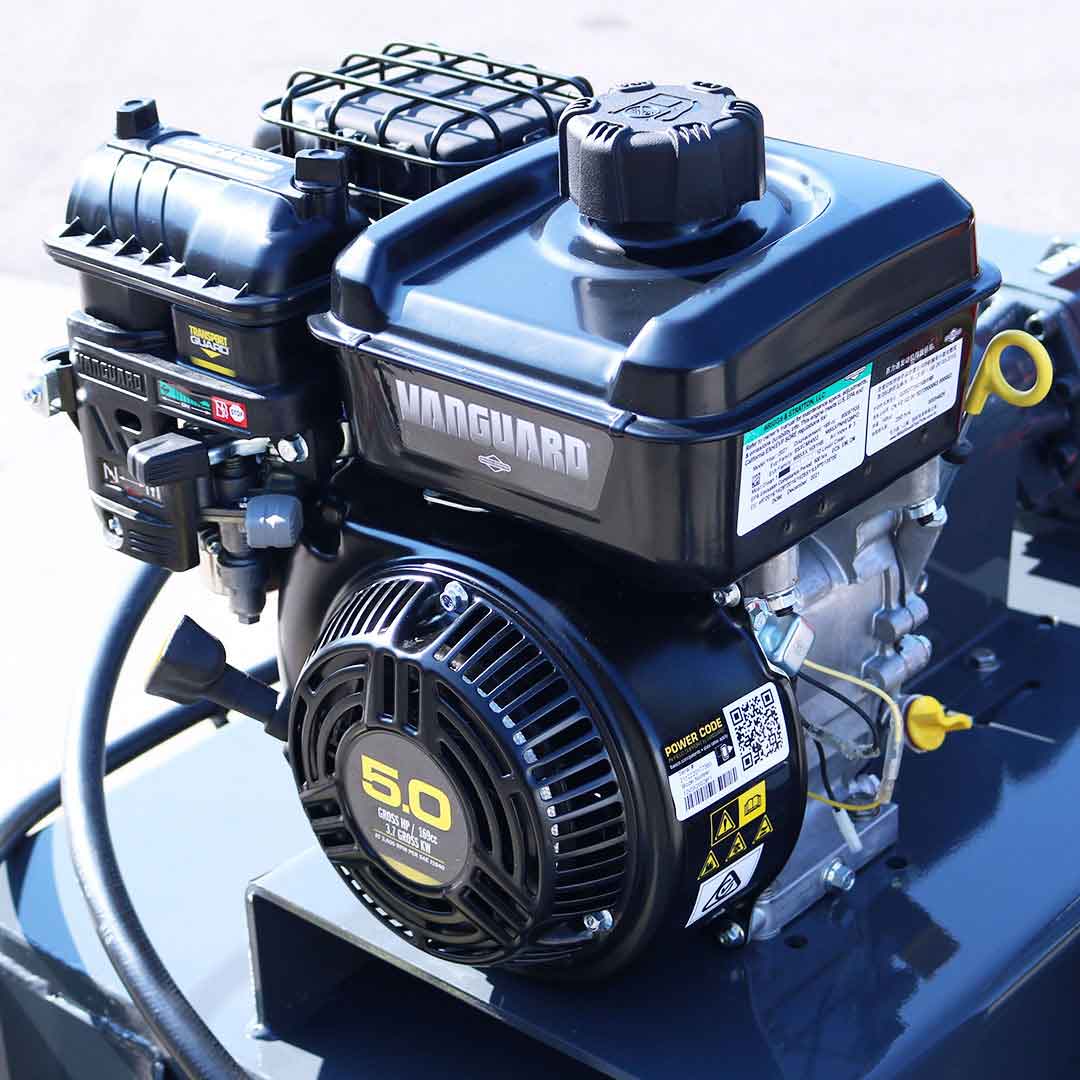

- Standard models come with a 5hp engine and a 10 GPM pumping system.
- Electric brakes and breakaway kits come standard on all trailer mounted equipment.

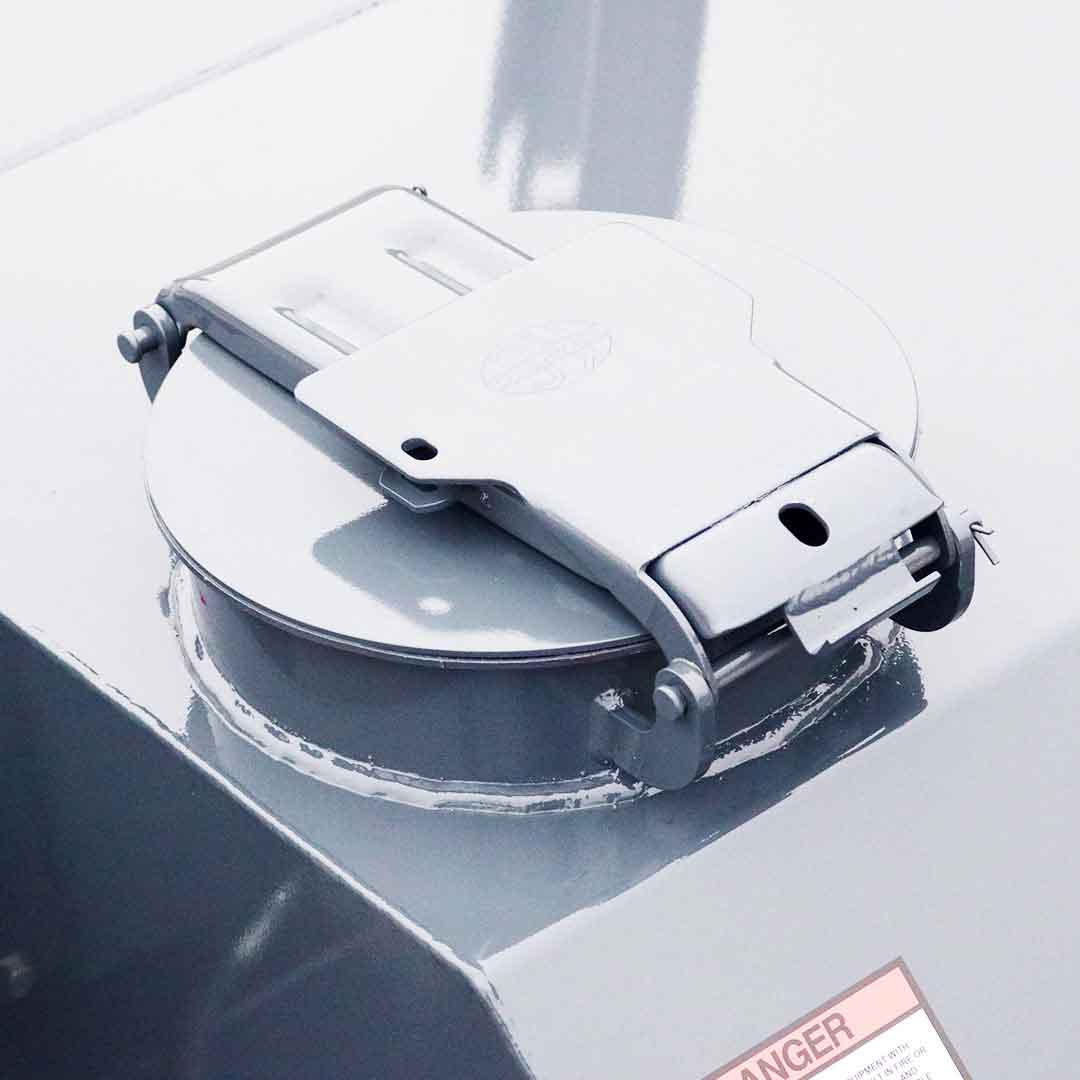

- 10” diameter vented flip-top filler lid for fast material filling.

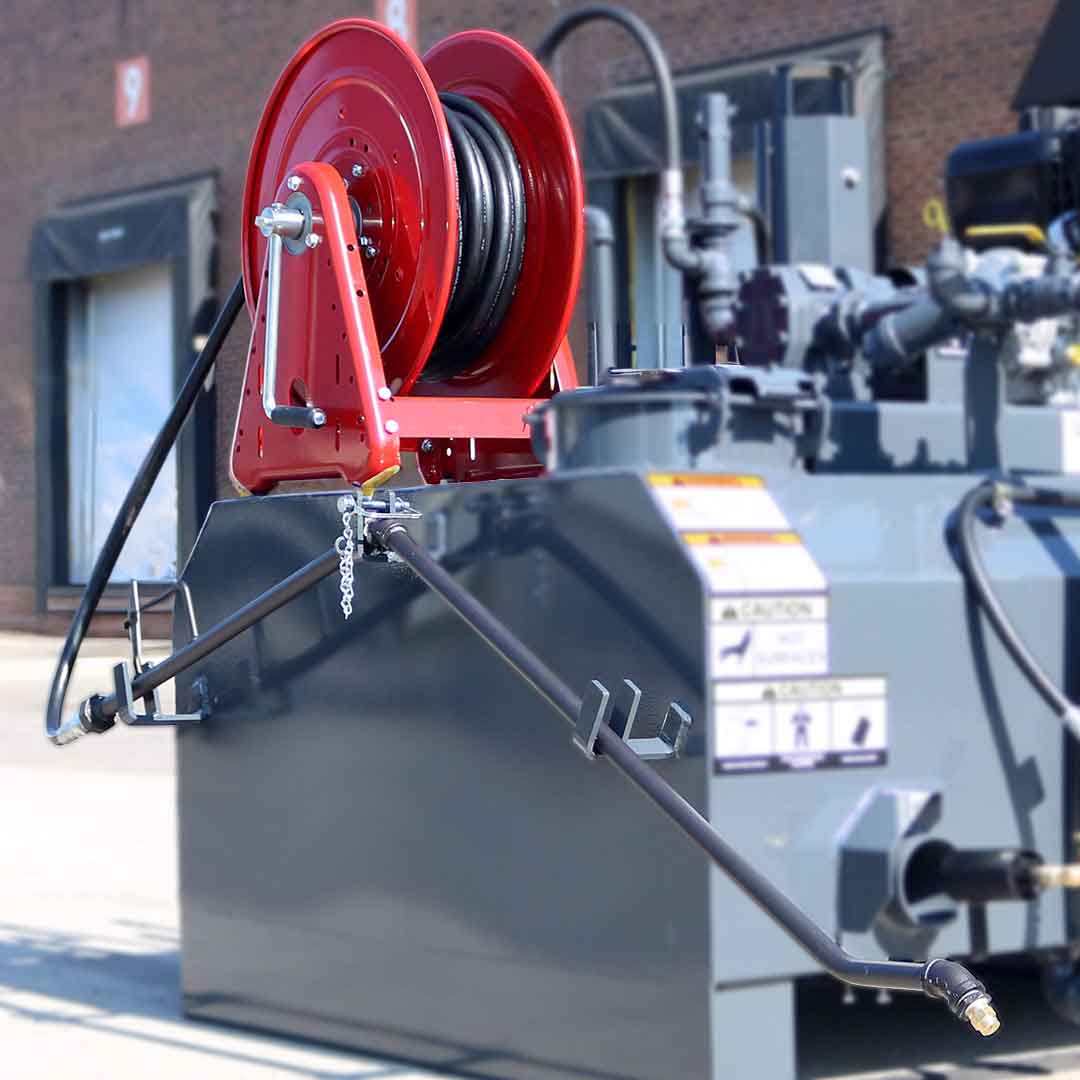

- A 5' spray wand and 50' material hose comes mounted on a heavy duty hose reel.
- Units are equipped with a large 10 gallon flushing tank 12 gallon recovery tank and a 2” material dispensing valve.
| Models | TPS115PS |
| Shipping Weight | 619 lbs (280 kg) |
| Engine | 5 HP |
| Tank Capacity | 115 gal (435 L) |
| Pump | 10 GPM |

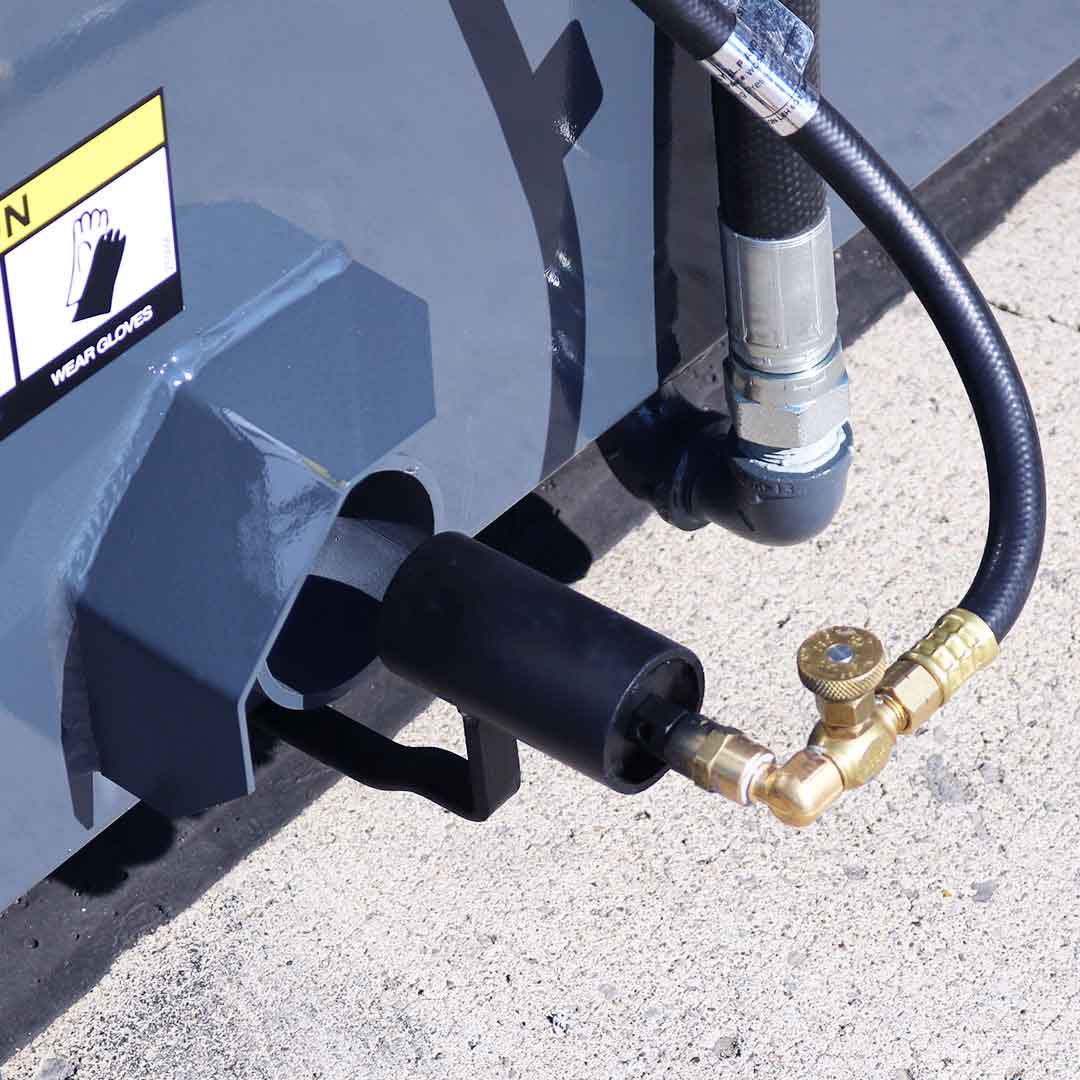

| Burner | (1) 80,000 BTU vapour propane |
| Dimensions | |
| Overall Length | 44” |
| Overall Width | 56" |
| Overall Height | 45" |
| Loading Height | 25" |
Marathon

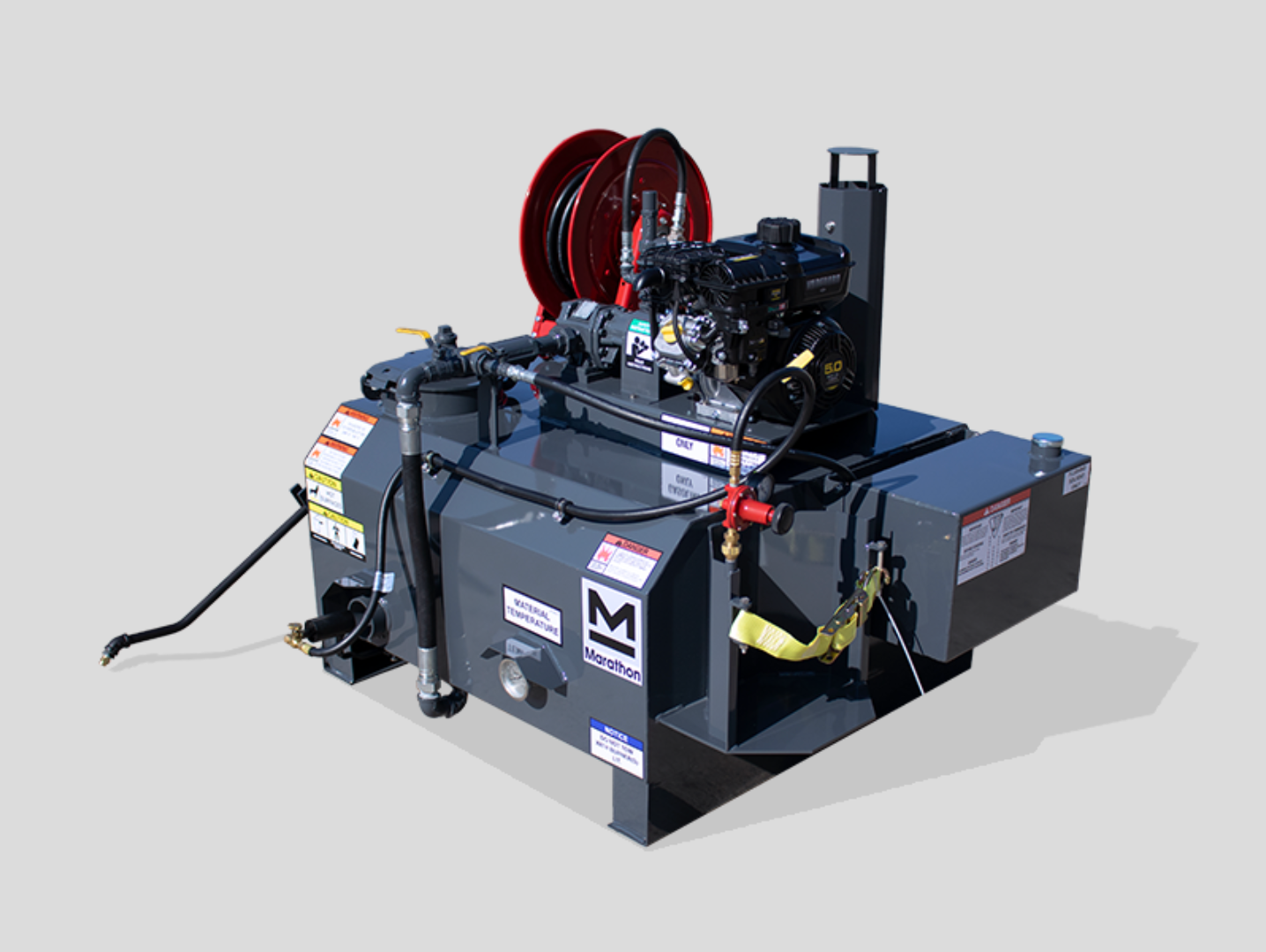

115 gal Hot Tack Sprayer
SKU
TPS115PS
Marathon's hot tack sprayers provide a fast and reliable means of heating and applying bituminous emulsions and tack coats. Our units are capable of heating a large volume of bitumen on a steady basis and offer many operator friendly features and options.
Features
- Manufactured with 10 GA steel for a long service life.
- Standard models come with a 5hp engine and a 10 GPM pumping system.
- Electric brakes and breakaway kits come standard on all trailer mounted equipment.
- 10” diameter vented flip-top filler lid for fast material filling.
- A 5' spray wand and 50' material hose comes mounted on a heavy duty hose reel.
- Units are equipped with a large 10 gallon flushing tank 12 gallon recovery tank and a 2” material dispensing valve.
| Models | TPS115PS |
| Shipping Weight | 619 lbs (280 kg) |
| Engine | 5 HP |
| Tank Capacity | 115 gal (435 L) |
| Pump | 10 GPM |
| Burner | (1) 80,000 BTU vapour propane |
| Dimensions | |
| Overall Length | 44” |
| Overall Width | 56" |
| Overall Height | 45" |
| Loading Height | 25" |
