Marathon's asphalt hot boxes are heavy duty, fully insulated and customizable to suit your needs! These units are oil-jacketed with a hydraulic dump option available. Slipper spring axles come standard on our models with all safety equipment built in! These asphalt hotboxes are ideal for Cities and Municipalities, as well as contractors, both big and small!

Features

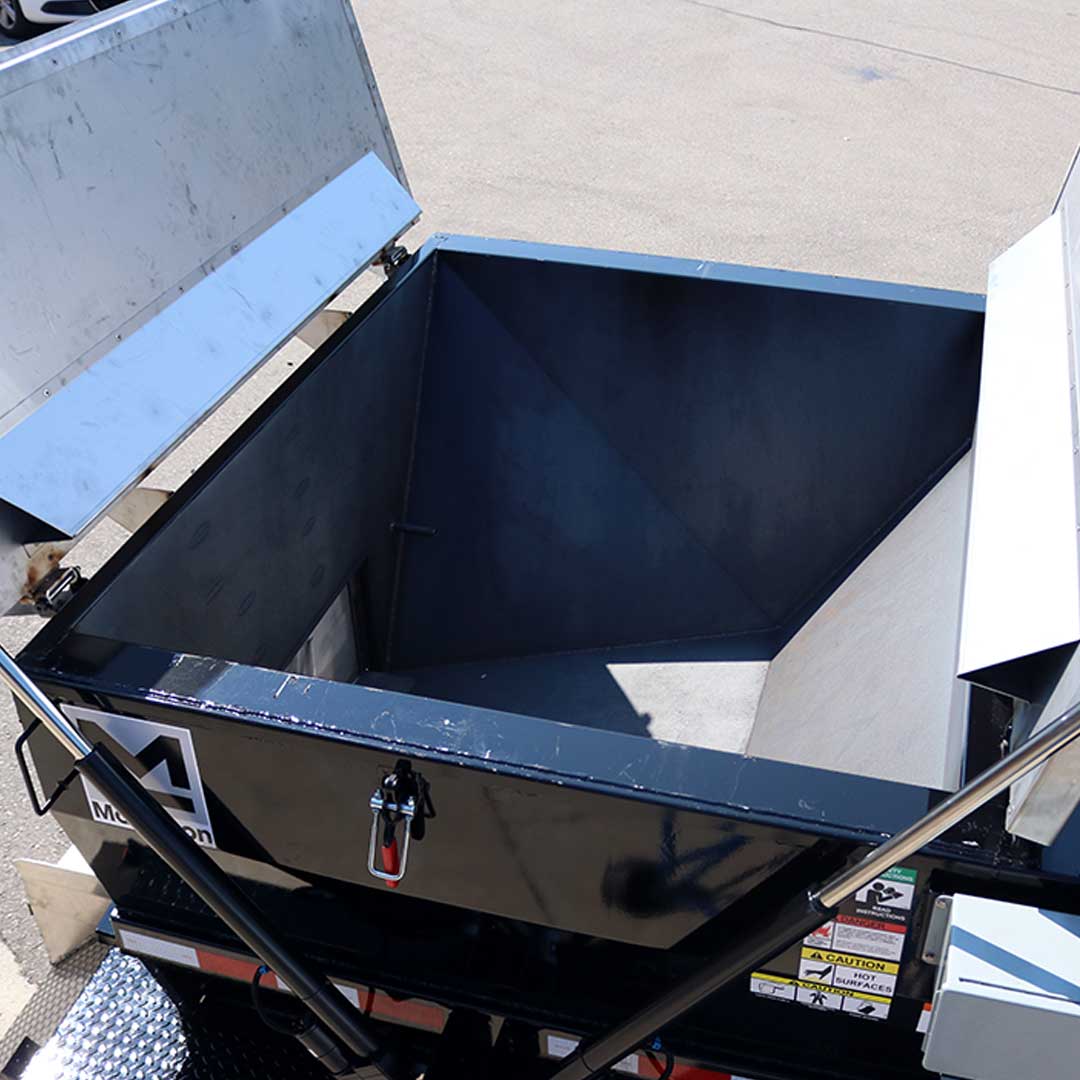

  • Material vat is polyhedral in construction, with a 10° rear-sloped floor, and all other walls channeling material directly towards rear gate.

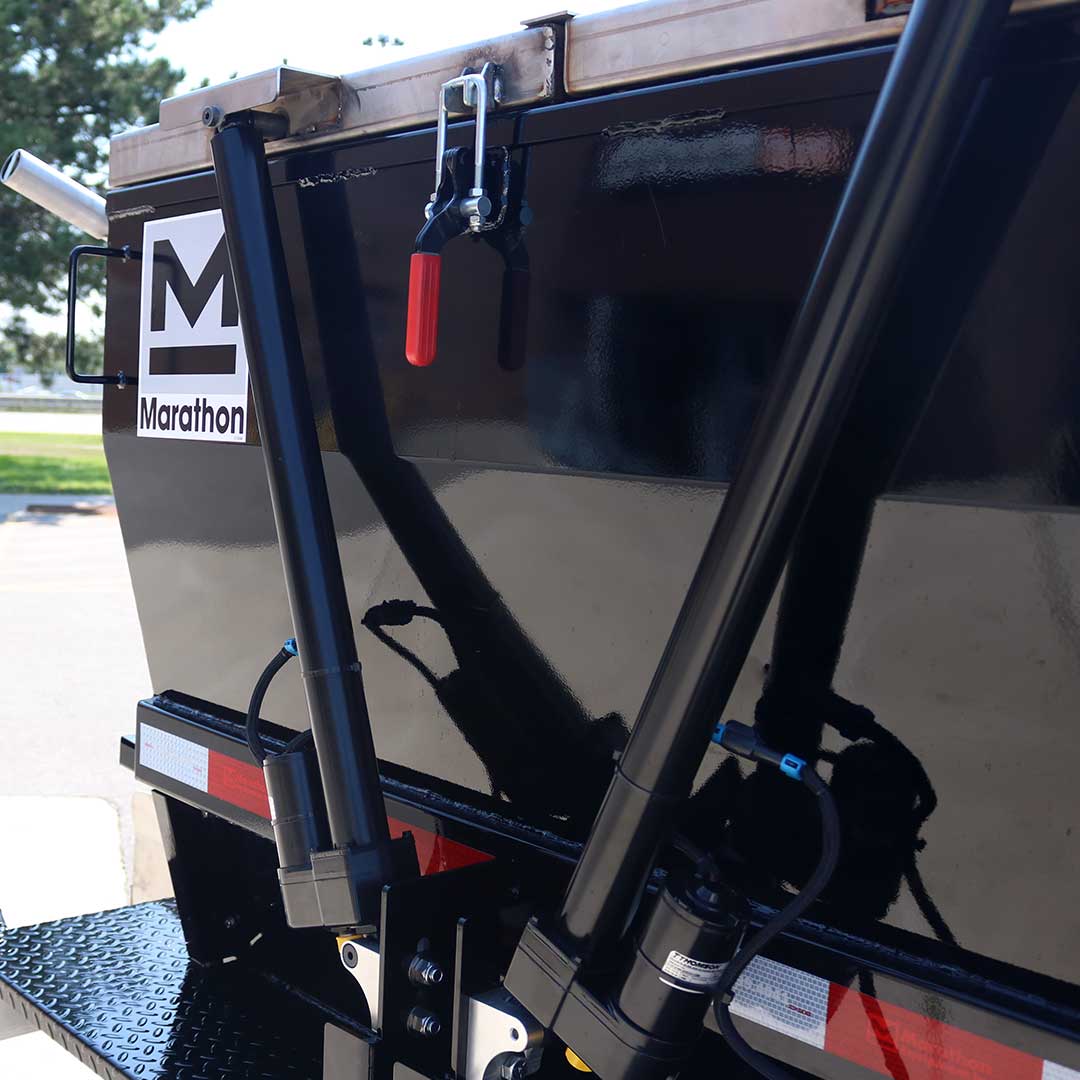

  • Electrically actuator top loading doors to decrease operator fatigue.
  • Outfitted with a stainless steel front, rear wall, shovelling platform and top loading doors to protect against exposure to harsh weather and resist damage from tools and asphalt build-up.
  • Tandem axle trailer design is versatile with a low center of gravity which gives the unit more stability.

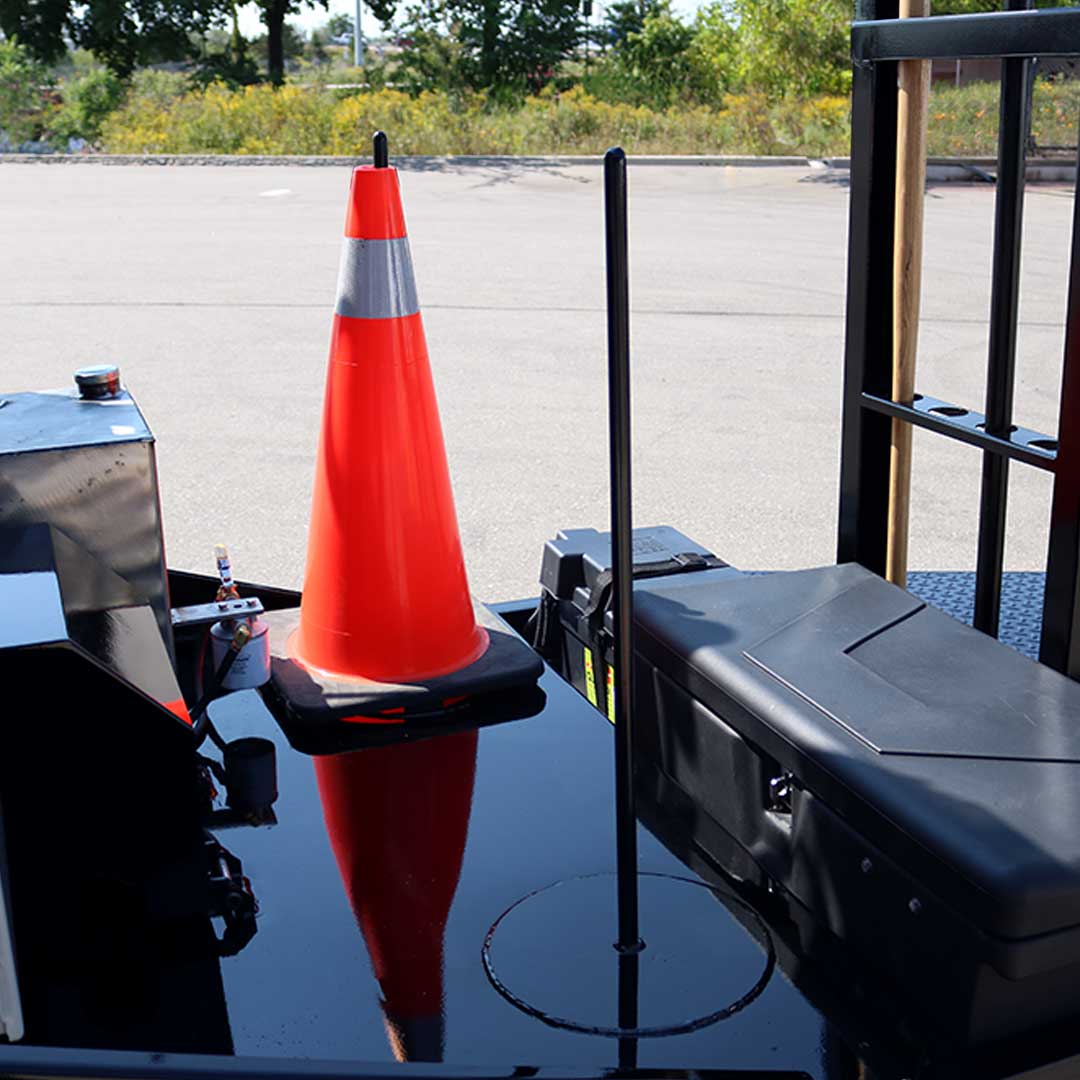

  • An 8 gallon tool rinse tank, 4 pc tool rack, 3 gallon release agent spray bottle with holder and 2 traffic cone holders come standard on all models.
Model HMT4000ODL
Shipping Weight
Shipping Weight 5,192 lbs (2,355 kg)
Capacity
Hot Mix Chamber 4,000 lbs (1,814 kg)
Heat Transfer Oil 49 gal (185 L)
Dimensions
Overall Length 205"
Overall Width 81"
Overall Height 86"
Overall Height with Arrow Bar 102"
Overall Height with Door Up 125"
Hopper Opening (L x W) 52" L x 62" W
Top Loading Door (L x W) 55" L x 70" W

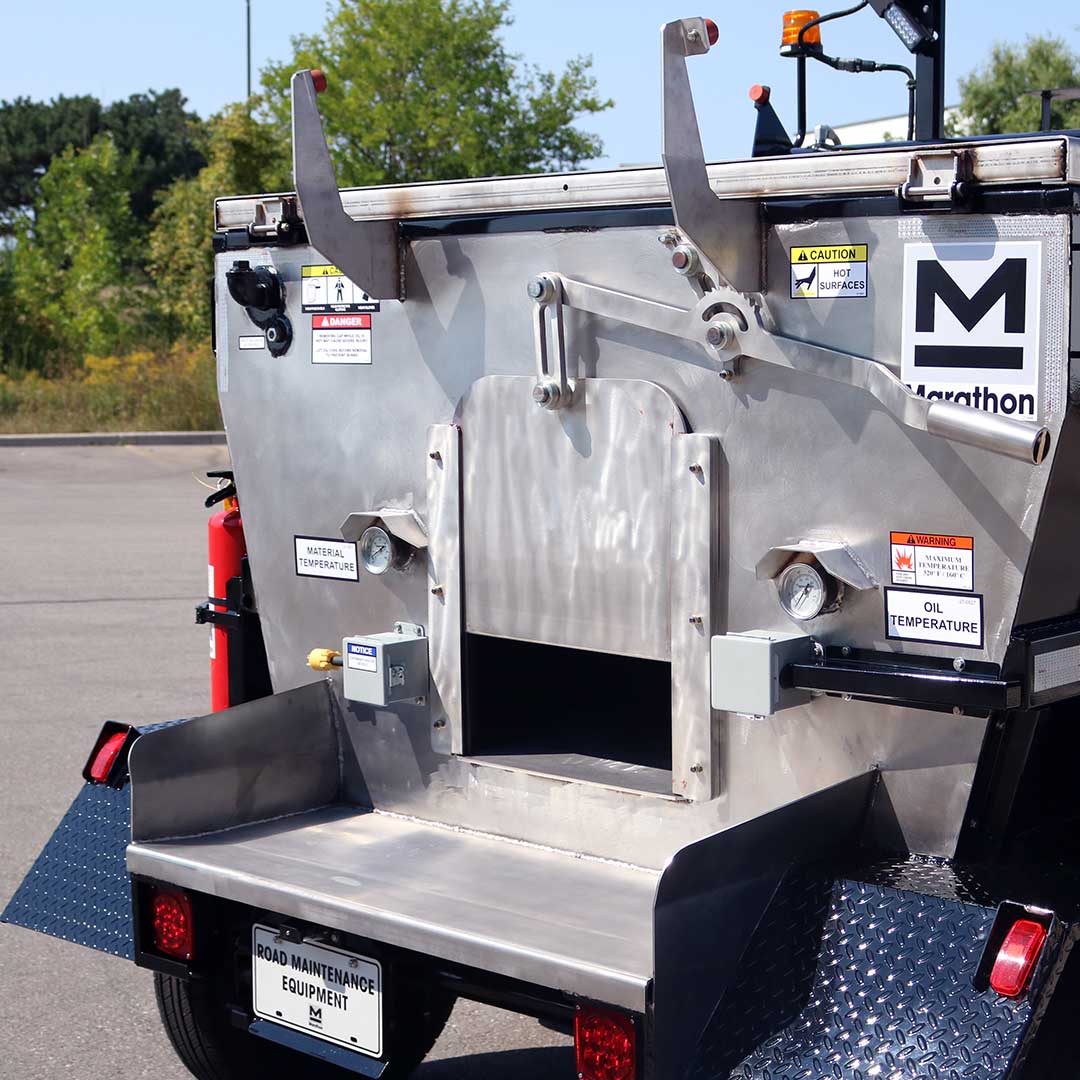

Rear Unloading Door 11" H x 18" W
Shoveling Platform
Height from Ground 24"
Diesel Burner 165,000 BTU
Hopper Insulation 1" ceramic body with 2” fibreglass lid
Suspension
Axle(s) Tandem
Load Capacity 10,400lbs (4,716 kg)
Tires (2) 225/75/R15


Marathon

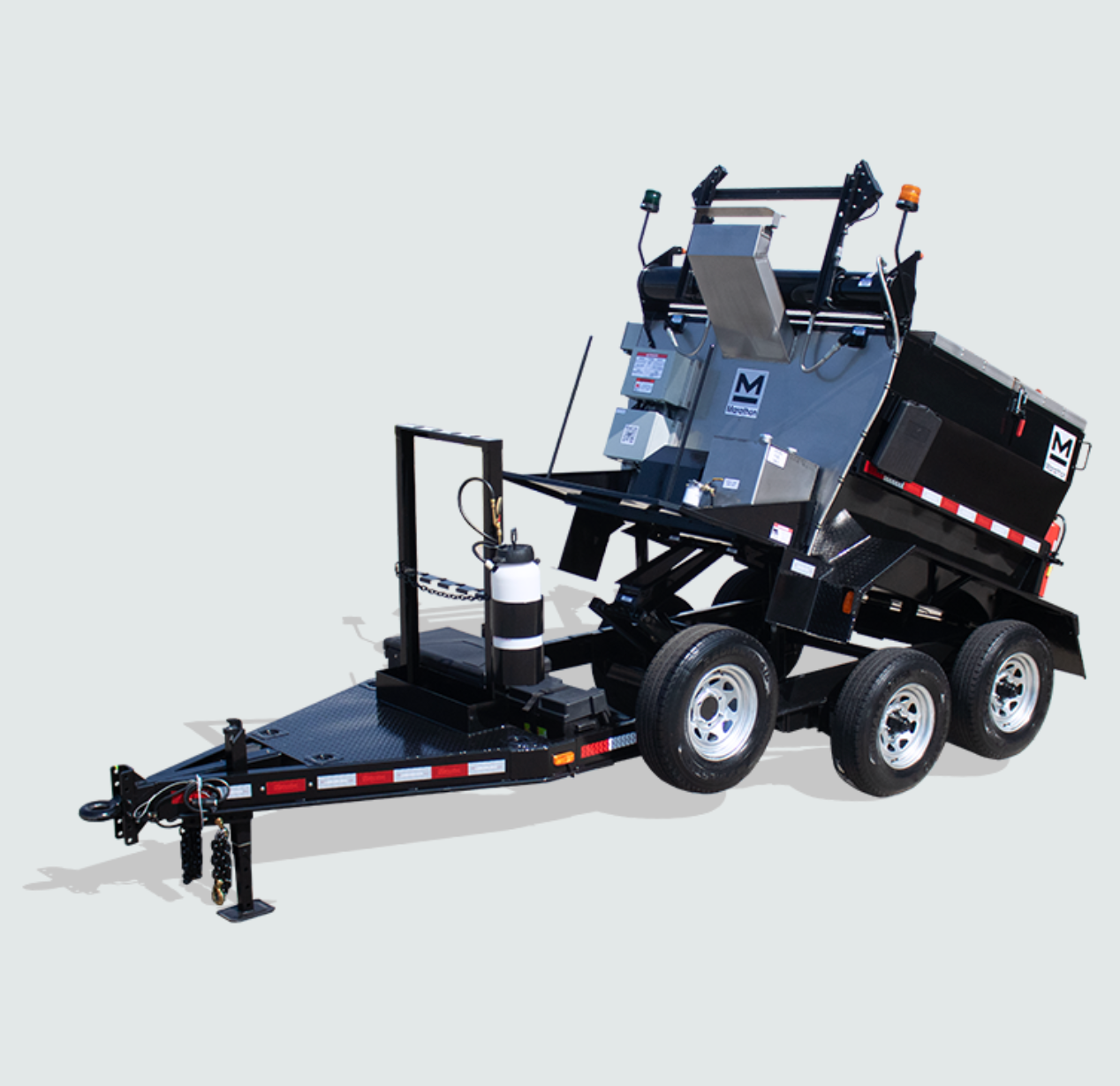

2 Ton Hot Box, Diesel Fired

SKU HMT4000ODL
Contact for pricing

Marathon's asphalt hot boxes are heavy duty, fully insulated and customizable to suit your needs! These units are oil-jacketed with a hydraulic dump option available. Slipper spring axles come standard on our models with all safety equipment built in! These asphalt hotboxes are ideal for Cities and Municipalities, as well as contractors, both big and small!

Features

  • Material vat is polyhedral in construction, with a 10° rear-sloped floor, and all other walls channeling material directly towards rear gate.
  • Electrically actuator top loading doors to decrease operator fatigue.
  • Outfitted with a stainless steel front, rear wall, shovelling platform and top loading doors to protect against exposure to harsh weather and resist damage from tools and asphalt build-up.
  • Tandem axle trailer design is versatile with a low center of gravity which gives the unit more stability.
  • An 8 gallon tool rinse tank, 4 pc tool rack, 3 gallon release agent spray bottle with holder and 2 traffic cone holders come standard on all models.
Model HMT4000ODL
Shipping Weight
Shipping Weight 5,192 lbs (2,355 kg)
Capacity
Hot Mix Chamber 4,000 lbs (1,814 kg)
Heat Transfer Oil 49 gal (185 L)
Dimensions
Overall Length 205"
Overall Width 81"
Overall Height 86"
Overall Height with Arrow Bar 102"
Overall Height with Door Up 125"
Hopper Opening (L x W) 52" L x 62" W
Top Loading Door (L x W) 55" L x 70" W
Rear Unloading Door 11" H x 18" W
Shoveling Platform
Height from Ground 24"
Diesel Burner 165,000 BTU
Hopper Insulation 1" ceramic body with 2” fibreglass lid
Suspension
Axle(s) Tandem
Load Capacity 10,400lbs (4,716 kg)
Tires (2) 225/75/R15
