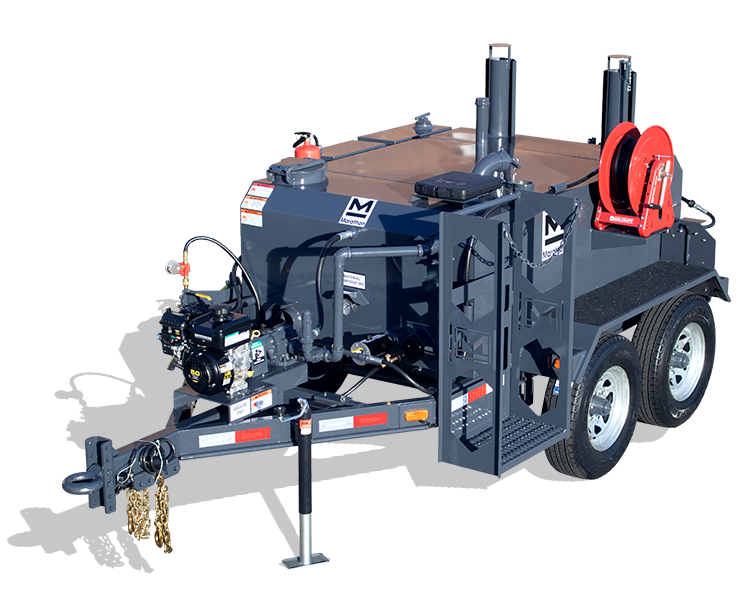

Marathon's hot tack sprayers provide a fast and reliable means of heating and applying bituminous emulsions and tack coats. Our units are capable of heating a large volume of bitumen on a steady basis and offer many operator friendly features and options.
Features
- Manufactured with 10 GA steel for a long service life.

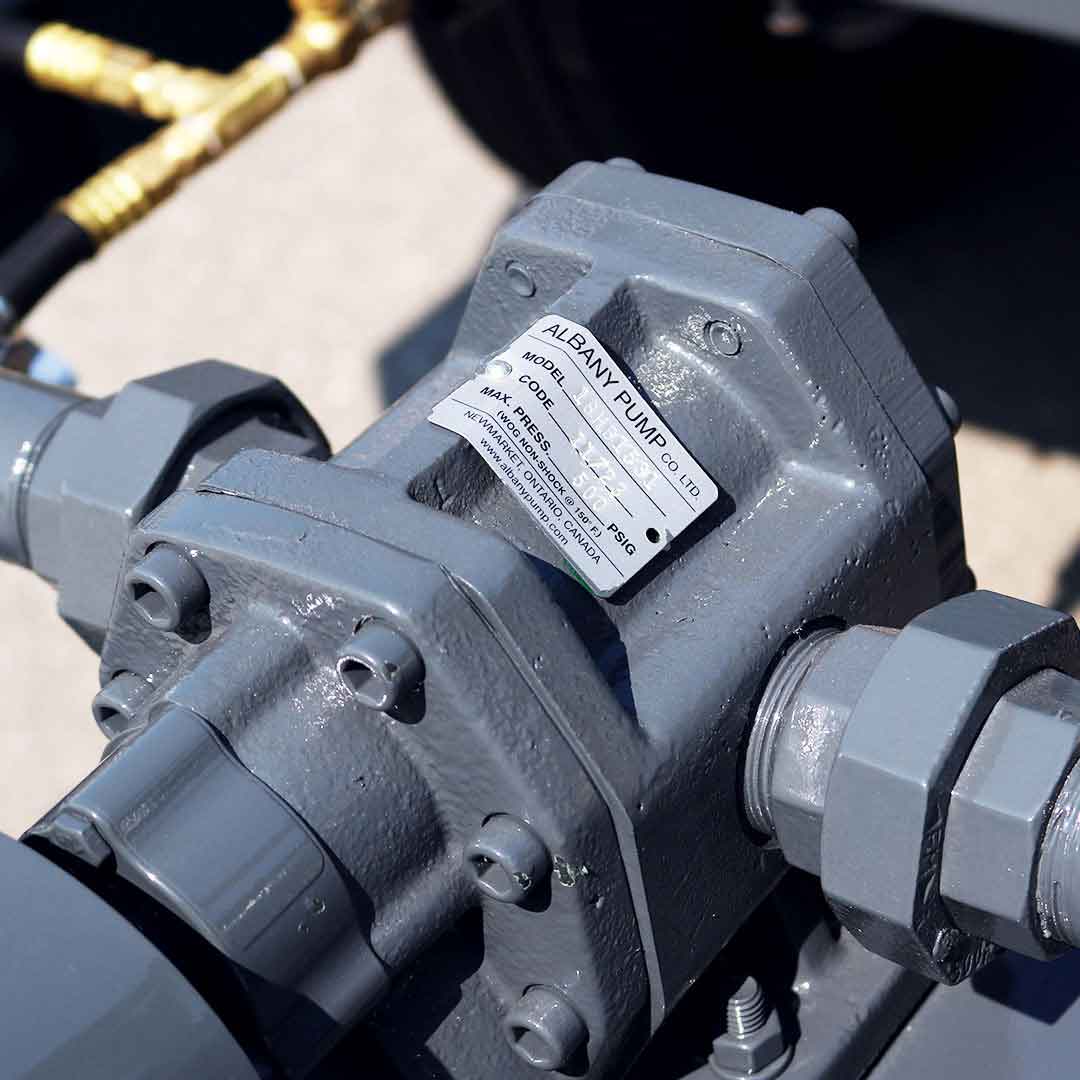

- Standard models come with a 5hp engine and a 10 GPM pumping system.

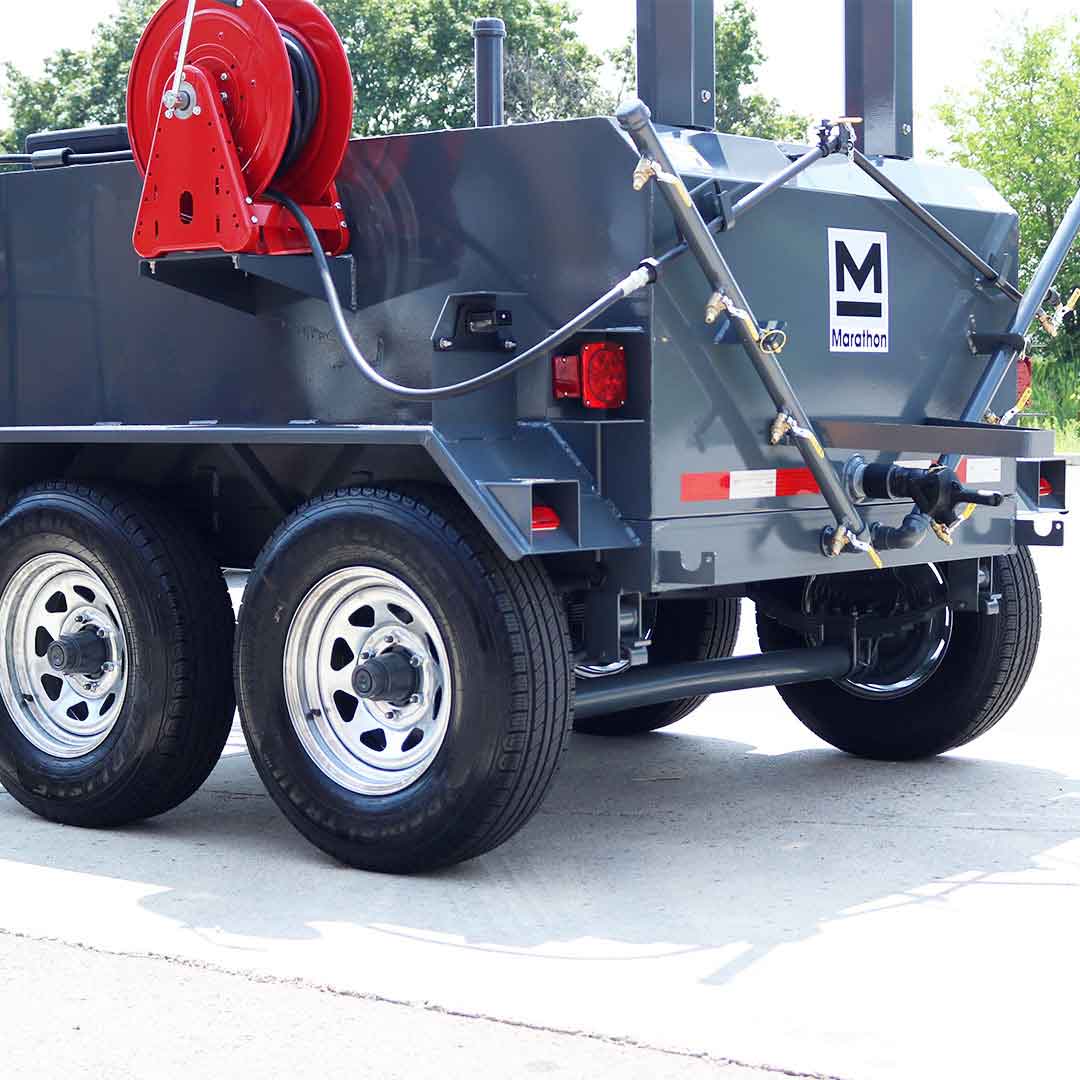

- Electric brakes and breakaway kits come standard on all trailer mounted equipment.
- 10” diameter vented flip-top filler lid for fast material filling.

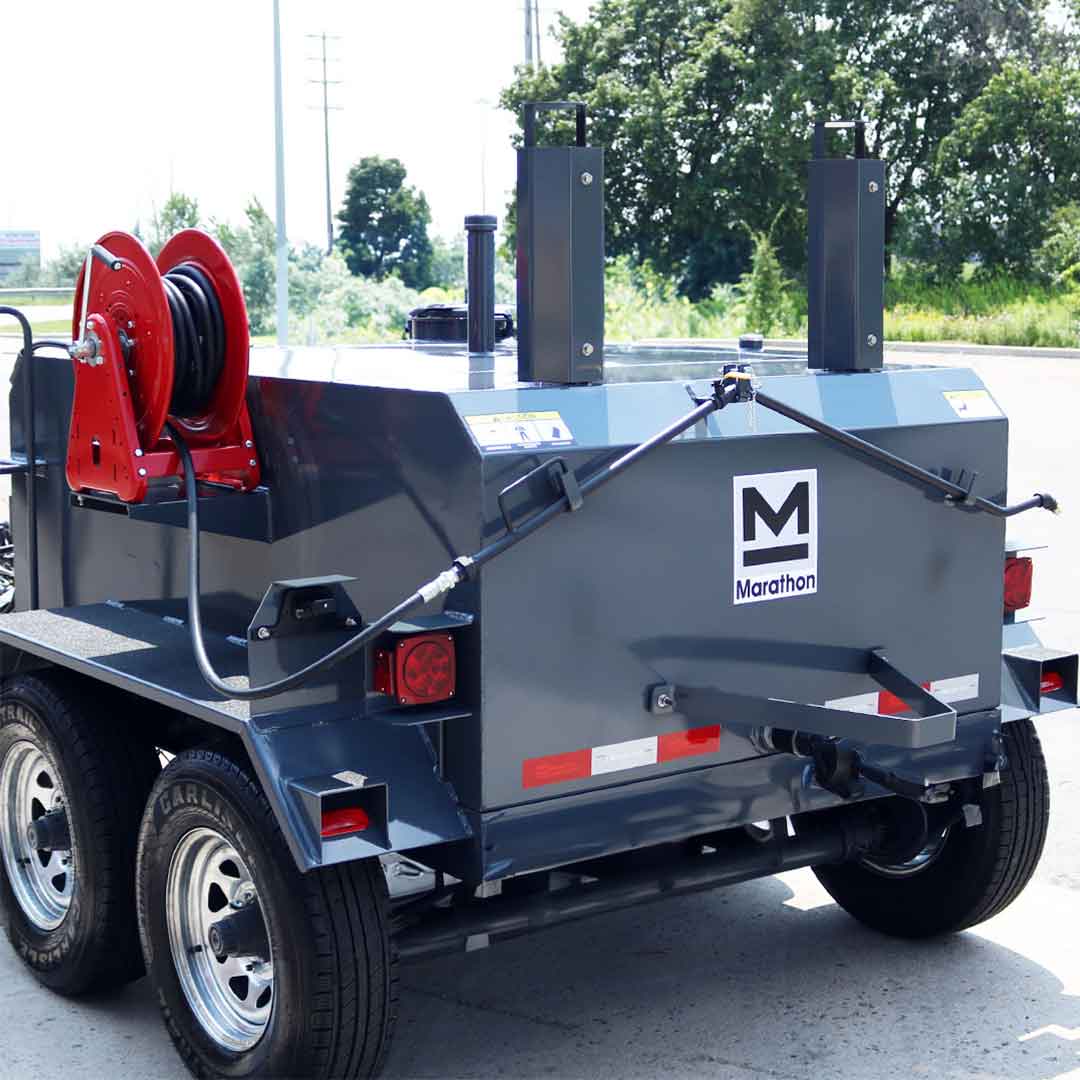

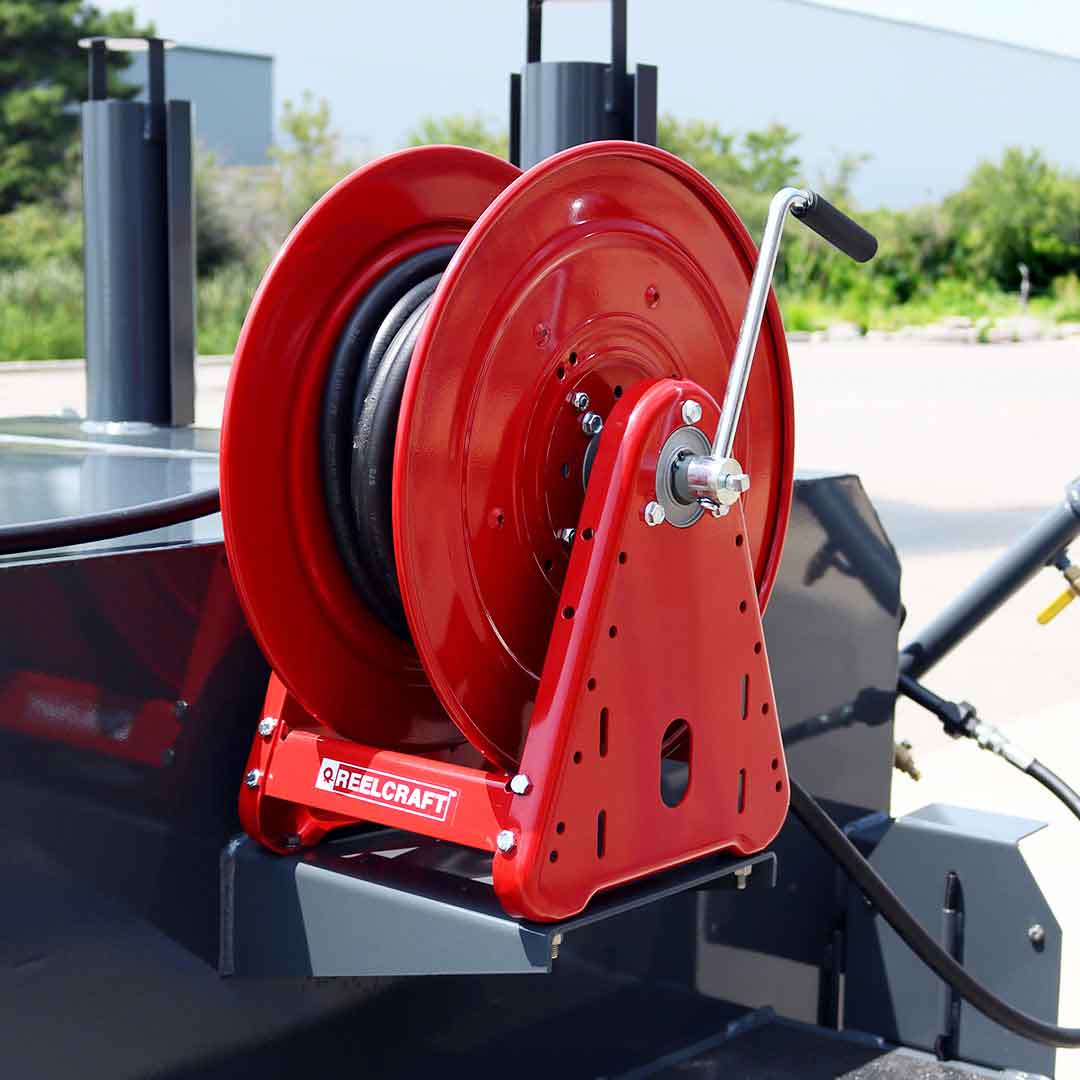

- A 5' spray wand and 50' material hose comes mounted on a heavy duty hose reel.
- Units are equipped with a large 10 gallon flushing tank 12 gallon recovery tank and a 2” material dispensing valve.
| Models | TPS500PT |
| Shipping Weight | 2,723 lbs (1,235 kg) |
| Engine | 5 HP |
| Tank Capacity | 500 gal (1,892 L) |
| Pump | 10 GPM |
| Burner | (2) 80,000 BTU vapour propane |
| Dimensions | |
| Overall Length | 166" |
| Overall Width | 80" |
| Overall Height | 74" |
| Loading Height | 54" |
| Suspension | |
| Axle(s) | Tandem |
| Load Capacity | (2) 5,200 lbs (4,718 kg) |
| Tires - Size | (4) 225/75/R15 |
